Micro Stop (Complete Package)

$227.00

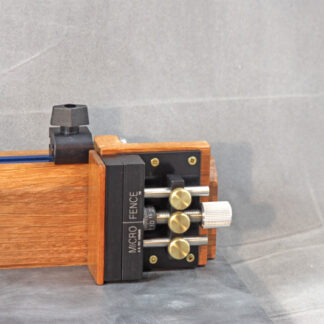

Our micrometer lead-screw/dial assembly is fitted with a precision-machined facia plate and pre-drilled/tapped mounting plate to serve as a ‘portable’ stop on virtually any woodworking machine. Designed specifically for use with table saw cross slides, the Micro Stop will also improve set-up control on the chop box, band saw, shaper and router table fences, sanding machines, doweling and mortising machines or anywhere you want to add micrometer adjustment.

Available in either Basic or Complete Packages. You can view instructions for the Micro Stop here.

Units *

Stop Collar Set

To memorize cut positions or pre-set where a second cut will occur. Particularly useful for mortising, fluting, inlay work and hardware installations. Comes in a set of 4.

7" Guide Shafts

12" Guide Shafts

For a little longer reach.

Product total

Options total

Grand total

SKU: MS-PKG Category:

Description

Over the last fifteen years, we’ve heard from a good many of our customers about how they’d like to have the fine-tuning capabilities of the Micro Fence on other machines in their shop. We’ve designed this iteration of the Micro Fence for this very purpose.

The Micro Stop sits on an aluminum plate that’s machined square and is pre-drilled for easy mounting (or clamping) to whatever surface you wish; it’s suitable for anything from shop-made jigs to CNC machine beds.

The Micro Stop Complete Package comes with 3″ shafts that allow 1 1/4″ of anvil movement and up to 1″ of micrometer travel. An additional pair of 5″ rods extends the tool’s reach. The anvil is pre-drilled and tapped (6-32 thread) in four locations to accept whatever secondary fence you’d like to attach. The package also includes an adjustable  UHMW slide to fit most woodworking machines’ miter slots.

Whether your application is as simple as adding the adjustability of the Micro Stop to a miter gauge cross-slide or whether you’re building your own version of a sophisticated router table, this component will improve its accuracy and performance.

What’s in the box – Micro Stop Complete

The Micro Stop’s anvil dimensions. The base plate measures at 3.5″ x 2.5″.

Here are some pictures and a video of the Micro Stop in action from a customer named Brian Holcombe:

Additional information

Weight 1.5 lbs
Dimensions 7.5 × 4.875 × 2.25 in
Metric or Imperial

Imperial, Metric
